Overview

Basic Info.

Model NO.	KC215E
Voltage	220V/380V
Automatic	Automatic
Certification	CE, ISO
Item	Digital Precision Draw Winder with Heated Godets
Min. Spindles	4 Spindles 40 Spindles/Set
Type of Winding	Digital Winding or Precision Winding
Machine Structure	Single Side
Traverse Length	100mm~250mm
Take-up Tubes	Cylindrical
Yarn Count	500d~3000d
Designed for	High Strength Filament
Rated Power	2.8kw/Spindle
Actual Power Consumption	20-50% of Rated Power
Transport Package	Wooden Case
Specification	2000mm*990mm*1780mm/755mm*990mm*1780mm
Trademark	KCGF
Origin	Zhejiang
HS Code	8445409000
Production Capacity	200 Sets Per Month

Product Description

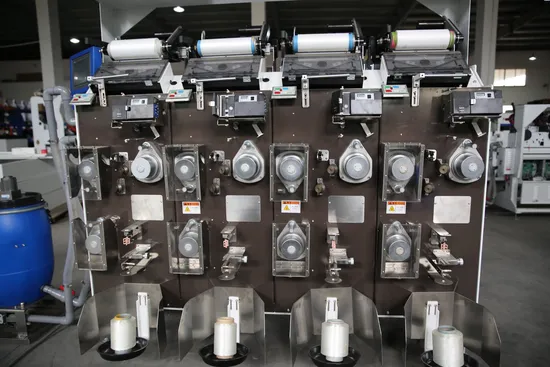

KC215E Digital Precision Draw Winder With Heated Godets

For demo machine set:
4 spindles/set+Machine head
+Stainless refueling tank/Plastic refueling drum
+Intelligent refueling box


*provide the spare parts; *Gurantee: one year;*Provide remote installation or door-to-door installation service; *Provide after sales service;*Welcome to visit our factory;

ISO9001; ISO14001; ISO45001; CE;

Zhejiang Kaicheng lntelligent Machinery Co., Ltd. is a national high-tech enterprise dedicated to manufacturing intelligent winders and twisters, and also researching, developing automation control software for high-end textile machinery. Kaicheng insists on technological innovation as its core competitiveness of the enterprise. We focus on researches in the field of twisting and winding technology, and keep up with international level especially some famous brands from Europe. We are the best choice and replacement for European brands. Kaicheng products are being sold not only in China but are exported to Southeast Asia, West Asia and North-America, Central and South America, as well as Europe. Kaicheng has set up full set of advanced processing equipment and technology research centers to take its research activities. Moreover, Kaicheng has established long-term cooperation relations with Donghua University, Wuhan Textile University and other universities; "Modern Textile Machinery Research Institute" and "Postgraduate Training Base" was co-established by Zhejiang Kaicheng Intelligent Machinery Co., Ltd.& Zhejiang Sci-tech University in year of 2020.

Product Description

Designed for draw heat setting to obtain high strength filament yarnRange of materials: filament sewing threads, embroidery thread and twisted industrial yarn Features
A. Accurate godet speeds to ensure consistent and even draw ratios;B. Intelligent control of godet temperature to ensure stable drawing of yarn;C.Digital intelligent control of oil temperature and oil application, which can ensure perfect oil application;D. Automatic pressure reduction system used for cradle which makes the cradle lift automatically, so that the yarn package formation can be guaranteed; E. The electronic yarn traverse system can adjust package formation parameters such as winding length and taper angle.
Spindle gauge: 495mm;
Type of winding: Digital winding or precision winding;
Linear speed: up to 1100m/min ( depend on the process parameters );
Machine structure: Single side, single layer, 4 spindles per section, 40 spindles/set;
It is designed as the same winding technology as European Brands but was developed and programmed by ourselves. The functions of our machines are identical with European Brands and our technology ensures well controlled winding. And some of our spare parts is compatible to European Brands, such as guiding motor, sensor and angle transducer. Product Parameters

Range of materials	Filament sewing thread, embroidery thread and twisted industrial yarn
Take-up tubes	cylindrical
Package shape	straight edge or bi-conical shape (Taper angle can be adjusted)
Rated power	580W/Spindle
Traverse length	130mm~250mm (It can be changed according to the actual situation)
Take-up package diameter	Up to 300mm
Yarn count range	500D~3000D
Rated power	2.8KW/spindle
Selected parts installed power	Oil feeding device: 15W/spindle
	Digital oil system: 40W/spindle
	Digital oil system oil tank: 100W/tank
Actual power consumption	20-50% of rated power (depend on the process parameters)
