Overview

Basic Info.

Model NO.	CX
Automation	Automatic
Computerized	Computerized
Profile	PVC Window, Door, Panel, Ceiling, etc.
Extruder	Conical Twin Screw Extruder
Screw L/D Ratio	25:1
Heater	Cast Aluminum
Profile Width	Customized
Vacuum Calibration Table	6 Meter
Motor	Simo
Contactor	Delixi
Temperature Controller	Omron
Transport Package	Wooden Package
Specification	SXJZ
Trademark	chenxing
Origin	Jiangsu, China
HS Code	8477800000
Production Capacity	3500 PCS/Year

Packaging & Delivery

Package Size500.00cm * 110.00cm * 250.00cm Package Gross Weight1500.000kg

Product Description

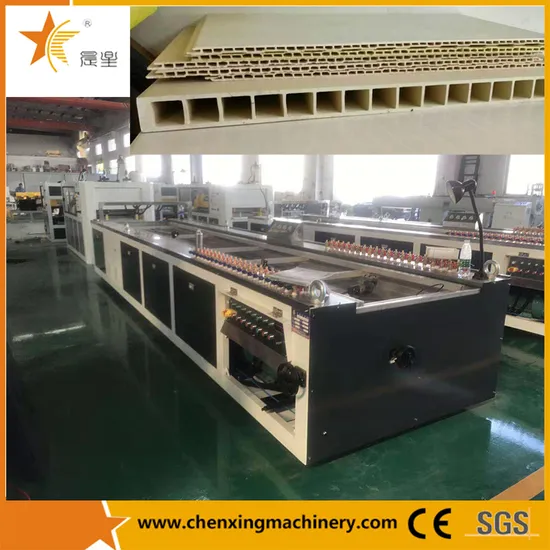

Plastic UPVC/WPC/PE Ceiling/Window Door/Wall Panel Extrusion Making Machine PVC Profile Extruder Production Line

YF Series PVC profile production line is mainly used in PVC or WPC door & window profiled material, wide door plate, window plate, extrusion of multi-holes pipe for passing through lines (four holes, six holes, seven holes, nine holes, etc.) For different sectional surface and molds, twin parallel (conical) screws extruder of different specifications can be chosen together with corresponding vacuum calibrating table, haul-off unit, cutting unit, tilter, etc.

1. Capacity of main frame can be optionally chosen from 60-700 kgs/hour.2. With different molds, it can products different kinds of profiles. 3. The haul-off unit has applied unique lift technique. Its work is stable, its reliability is good, its pulling force is large. 4. Vacuum setting has applied special enlarged vortex cooling system which is good for cooling and calibrating so as to meet demand of high speed extruding. 5. Movement speed and drawing speed of cutting machine keep synchronous. 6. All movements are controlled by imported PLC, the design is reasonable, the operation is stable, it can conduct automatic cutting with fixed length. 7. Powder & dust suction device can be provided. 8. The stacker platform can choose such specifications as 4-meter, 6-meter, 8-meter, 11-meter, etc. 9. With twin parallel screws extruder, it is particularly suitable for high speed extruding of profiled material.

If you need this machine,pls think about the following questions and then send your messeage. And we will offer you our quotation ASAP. 1. Could you tell me what is the material? PVC/ WPC? Are there additional additives added to the ingredients? 2. Could you tell me the width and thickness of the board? Or could you send me some pictures about it 3. If you want to produce board, pls tell me the number of the layers. 4. Do you have requirement to the capacity? 5. The default voltage of our machines is 380V, 50Hz, 3 phrase. If there is different in your factory, pls tell me.

Zhangjiagang City Chenxing Machinery Ltd. CO. was established in 2002, its predecessor is Zhangjiagang City Samsung Machinery Plastic Factory, focusing on the production of plastic machinery for more than 20 years. It is a progressive enterprise integrating new product development, product manufacturing, sales and trade in one. The main products include: pipe, profile, sheet and pelletizing extrusion machinery, waste plastic recycling production machinery, and all kinds of auxiliary machines necessary in the process of plastic production, such as loading machines, mixers, formulators, grinding machines, mould temperature machines, chillers, etc. We sincerely welcome customers at home and abroad to cooperate with us, and sincerely welcome to visit our company. Chenxing is willing to work with you to create a future together.

Q: Are you factory or trading company?A: We are a manufacturer professional in the plastic machinery industry over 20 years.Q: How can you guarantee your quality?A: We test each machine before delivery to ensure that it is in perfect condition.Q: Do you have any after-sales service?We offer 12 months warranty period. During this period, we can provide parts for free due to manufacture quality issues, human error is not included.

If any need, send message below without hesitation!

Product Description

Main Features

Product Parameters

Model	YF180	YF240	YF300	YF400	YF500	YF600
Max. Width of product(mm)	180	240	300	400	500	600
Extruder model	SJSZ51/105	SJSZ65/132	SJSZ65/132	SJSZ65/132	SJSZ80/156	SJSZ80/156
Max. Extrusion capacity (kg/h)	150	250	250	250	350	350
Extruder power	22	30/37	30/37	30/37	55	55
Cooling water(M3/H)	5	7	7	8	10	12
